Capacity:1000 tons per month
Color:White
Size:As your requirements
Product Introduction

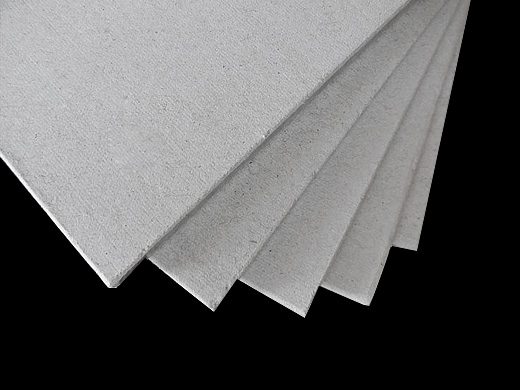

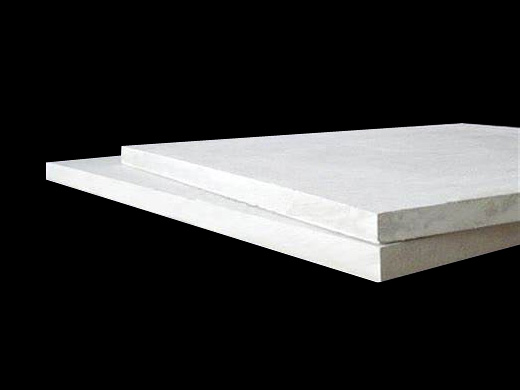

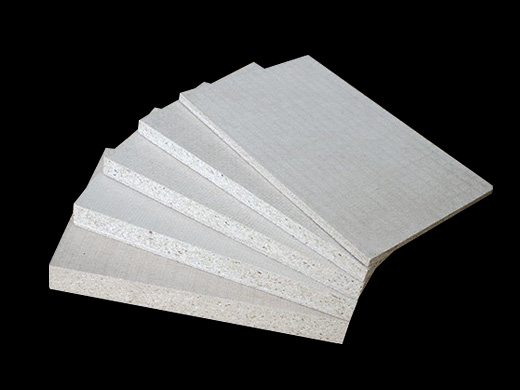

Calcium silicate board is a new type board which mainly comprises silica and calcium materials , and manufactured by pulping, molding, steam curing, drying and post processing. Performed board is anti tread, fireproof,waterproof, damp-proof, radiation resistance, resistance to climate change. This product has excellent performance of light weight, high strength, fire insulation and good processing etc.
Features
1.Excellent waterproof performance. 2.No oil absorption, no water absorption, maintain the stability of the insulation performance. 3.Non asbestos, no toxic and harmless to human body. 4.High strength. 5.Excellent corrosion resistance. 6.Excellent sound insulation.
Application
It can be applied for industrial pipeline, heat supply pipe network system in the fields of electric power, petroleum chemistry,metallurgy ,building and shipping etc. It can also be used in wall lining and back lining of industry furnace and heating device.
Technical Data
650 Calcium Silicate Board
|
Physical Properties |
Unit |
ASTM C533 |
GB 10699 |
CS1046 |
|
|
Density |
Kg/m3 |
≤250 |
≤220 |
≤250 |
|
|
Service Temperature |
℃ |
650 |
650 |
650 |
|
|
Thermal Conductivity |
(50℃) |
W/m.k |
≤0.060 |
- |
≤0.052 |
|
(93℃) |
≤0.065 |
≤0.065 |
≤0.0535 |
||
|
(100℃) |
- |
≤0.065 |
- |
||
|
(149℃) |
≤0.072 |
- |
≤0.054 |
||
|
(200℃) |
≤0.079 |
≤0.077 |
≤0.056 |
||
|
(260℃) |
≤0.087 |
- |
≤0.0757 |
||
|
(300℃) |
- |
≤0.088 |
- |
||
|
(371℃) |
≤0.102 |
- |
≤0.0923 |
||
|
(400℃) |
- |
≤0.106 |
- |
||
|
(500℃) |
- |
≤0.127 |
≤0.098 |
||
|
(538℃) |
≤0.111 |
- |
≤0.1002 |
||
|
Linear shrinkage after heating |
% |
≤2.0 |
≤2.0 |
≤1.3 |
|
|
Bending Strength |
MPa |
≥0.344 |
≥0.30 |
≥0.36 |
|
|
Tensile Strength |
MPa |
≥0.689 |
≥0.45 |
≥0.85 |
|
|
Heating Surface Properties |
CM |
≤0.635 （Non cracking ） |
- |
≤0.635 （Non cracking） |
|
|
Surface Combustion Properties |
Flame Spread Index |
- |
0 |
- |
0 |
|
Smog Index |
- |
0 |
- |
0 |
|
|
Water content |
% |
≤20 |
- |
≤4 |
|
|
Flammability |
- |
Nonflammable |
Nonflammable |
Nonflammable |
|
| Common Size (L*W*T, mm): 400x250x25~120; 500x500x25~120; 600x300x25~120; 900x600x25~120; 1000x500x25~120; 1050x850x25~120; 1080x950x25~120; 1220x1220x25~120; other sizes could be customized. | |||||
| Physical Properties | Unit | CN1000 STD | ASTM C533 | JIS A9510 | GBT10699 | |||||
| GR-170 | GR-200 | GR-220 | GR-250 | |||||||
| Bulk Density | Kg/m3 | 170 （±10） | 200（±10） | 220（±10） | 250（±10） | ≤352 | ≤220 | ≤270≤220 | ||
| Highest Temperature | ℃ | 1000 | ||||||||
| Rupture Strength | MPa | ≥0.25 | ≥0.35 | ≥0.50 | ≥0.55 | ≥0.344 | ≥0.30 | ≥0.30 | ||
| Thermal Conductivity | W/m.k | ≤0.048+0.00011t | ≤0.078（93℃）≤0.060（70℃）≤0.060（100℃） | |||||||
| Linear shrinkage after heating1000℃X16hrs | % | ≤2.0 | ||||||||
| “t”is the average temperature of working surface and cold surface | ||||||||||
| Physical Parameters | Unit | Value |
| Density | Kg/m3 | 800-1000 |
| Service Temperature | ℃ | 1000 |
| Linear shrinkage after heating（1000℃X3hrs） | % | ≤2 |
| Rupture Strength | MPa | ≥7 |
| Tensile Strength | Mpa | 13 |
| Thermal Conductivity | W/m.k | 0.13 |
| Flammability | - | Nonflammable |
| Specification | （2300-2500）X1220X （25~50）mm All size can be customized made | |
